Neutrik powerCON TRUE1 Power Connectors.
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

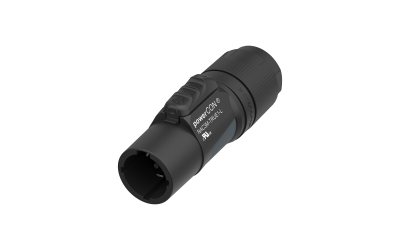

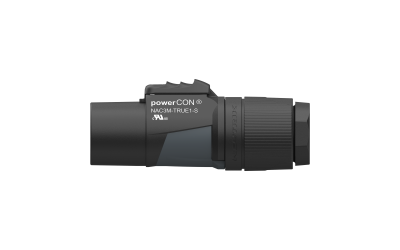

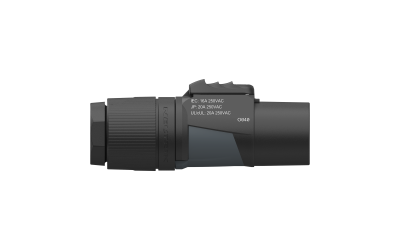

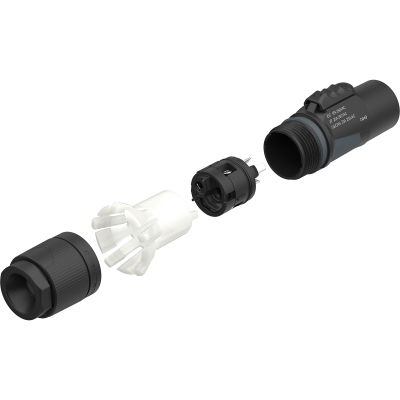

powerCON TRUE1 NAC3M-TRUE1-S & NAC3M-TRUE1-L connector, 3 pole, male plug with screw connection, coding mains 250V, 16A (USA: 20A), coding colour black, strain relief colour black

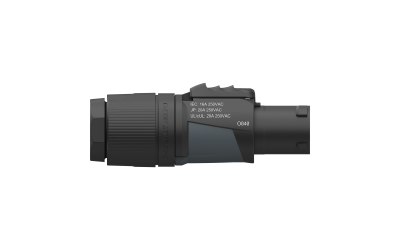

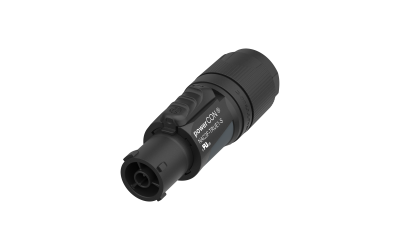

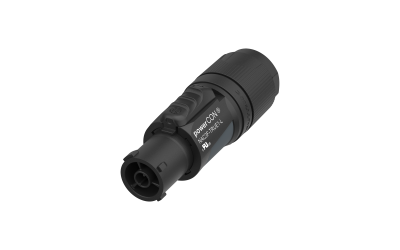

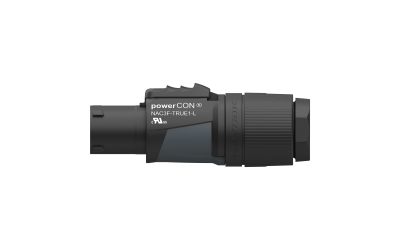

powerCON TRUE1 NAC3M-TRUE1-S & NAC3M-TRUE1-L connector, 3 pole, female socket with screw connection, coding mains 250V, 16A (USA: 20A), coding colour black, strain relief colour black,
powerCON TRUE1 NAC3 Features & Benefits
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- UL Certified According to UL 498
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6mm to 12mm (S) or 10mm to 16mm (L)
