Instagrid LINK MAX for combining three Instagrid ONEs to create a 16A 3phase 400V Output

1 to 2 day delivery
SKU: INS_LINK-MAX-990-00008

Now in stock!

This product is available for a date/time specific delivery, please contact us to discuss.

The Instagrid LINK MAX is also available for rental - please message us for further information.


Price:
£1,980.00
Ex. VAT £1,650.00

Delivery calculated at checkout. Free UK delivery on orders above £300.

Stock:
In stock
Delivery: 1 - 2 working days

Description

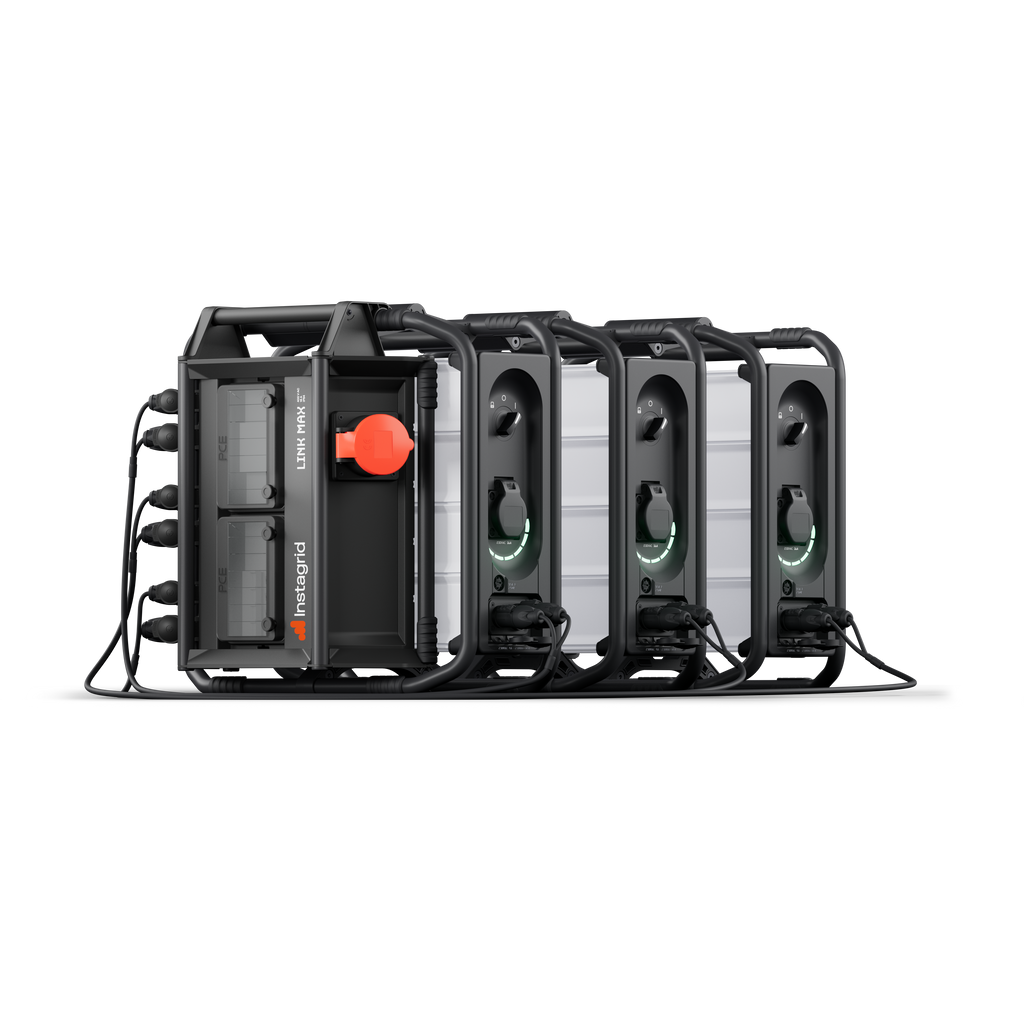

Connect 3 x Instagrid ONE to 1 x Instagrid LINK MAX to create a 16A 3PH 400V Supply

Instagrid LINK MAX is a specialised accessory that is designed to work specifically with three compatible (latest model release only) Instagrid ONE units.

Exceptional Portability
Instagrid LINK MAX is an accessory that allows you to combine the power of three compatible Instagrid ONE units to create a 400V, 3-phase hand-portable power system.

Unmatched Peak Power
The Instagrid LINK MAX solution provides peak power of up to 54 kW, enabling you to run highly demanding equipment effortlessly.

Simple Plug & Play Experience
Arrive on site, plug in the cables and you're ready to go!

Efficiency and Reliability
Access 3-phase power when you need it, wherever you need it. Stay in control of your own power requirements.

Safer Working Environment
Eliminates the noise and air pollution of generators. Reduce unnecessary cable runs and trip hazards.

Flexible Innovation
This modular system delivers a 3-phase portable power solution and standalone 230v power.



Events, TV, Film & Video, Catering, Construction

GENERAL INFORMATION
Weight: 5.1kg
Dimensions: 391mm x 320mm x 140mm
IP Class: IP54
Protection class: Class I with Class II Construction
Permitted operating temperature: - 20 °C to 60 °C
OPERATION
Nominal Output Voltage: 400v AC
Frequency: 50 Hz
Rated Output Current: 16A
Rated Output Power: 11kW
Peak Power: 54kW
CONNECTIONS

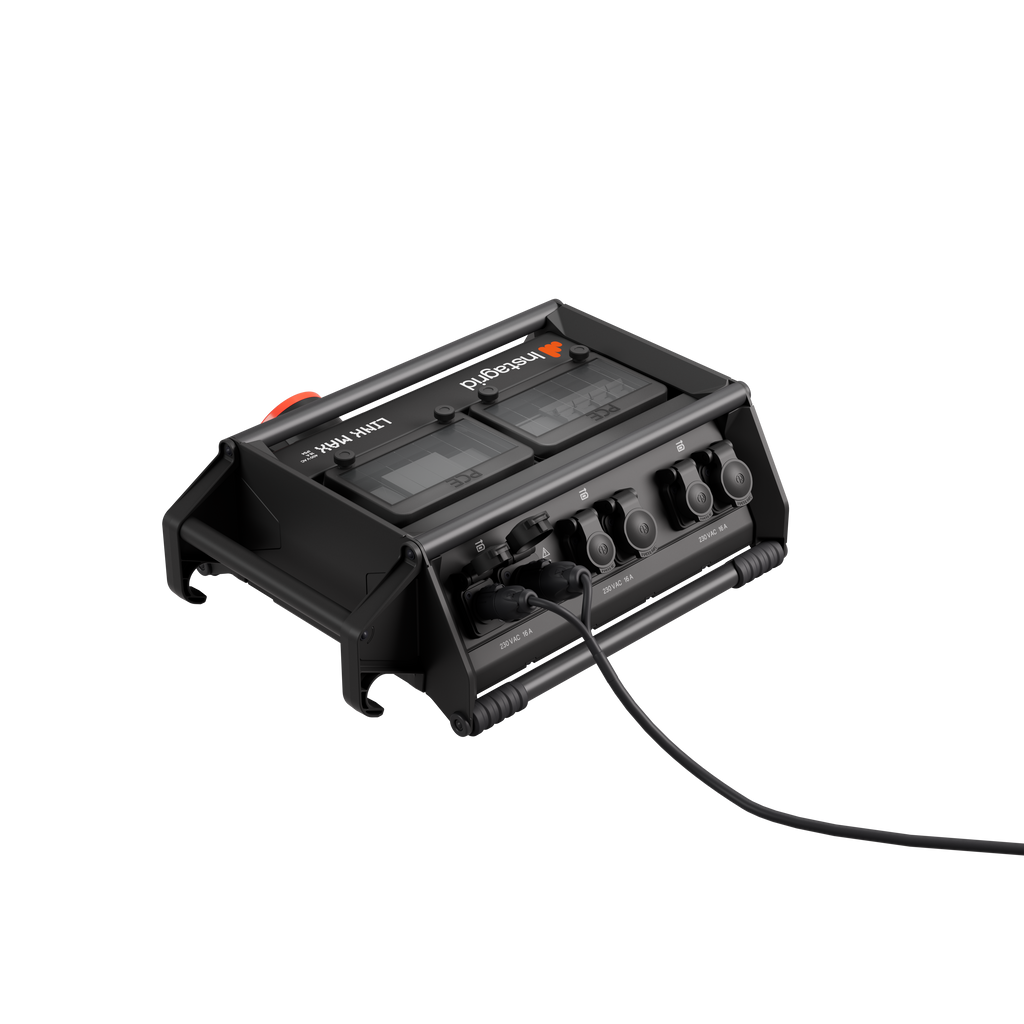

Input connectors: 3 x Neutrik powerCON TRUE1 TOP® - NAC3FPX
  3 x Neutrik powerCON TRUE1 TOP® - NAC3MPX
Output connector: 1 x 16A 400V CEE 5-pole 6h
PROTECTION
Phase guard: Phase monitoring device (PMD)
Insulation monitor: Insulation monitoring device (IMD)
Circuit breaker: 1 x 4pole C16
