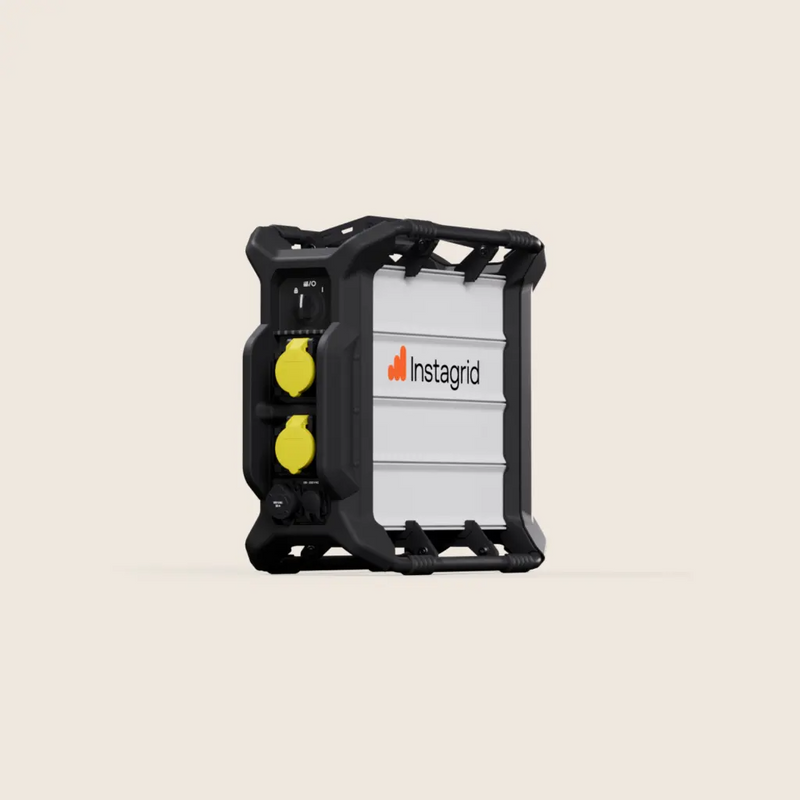

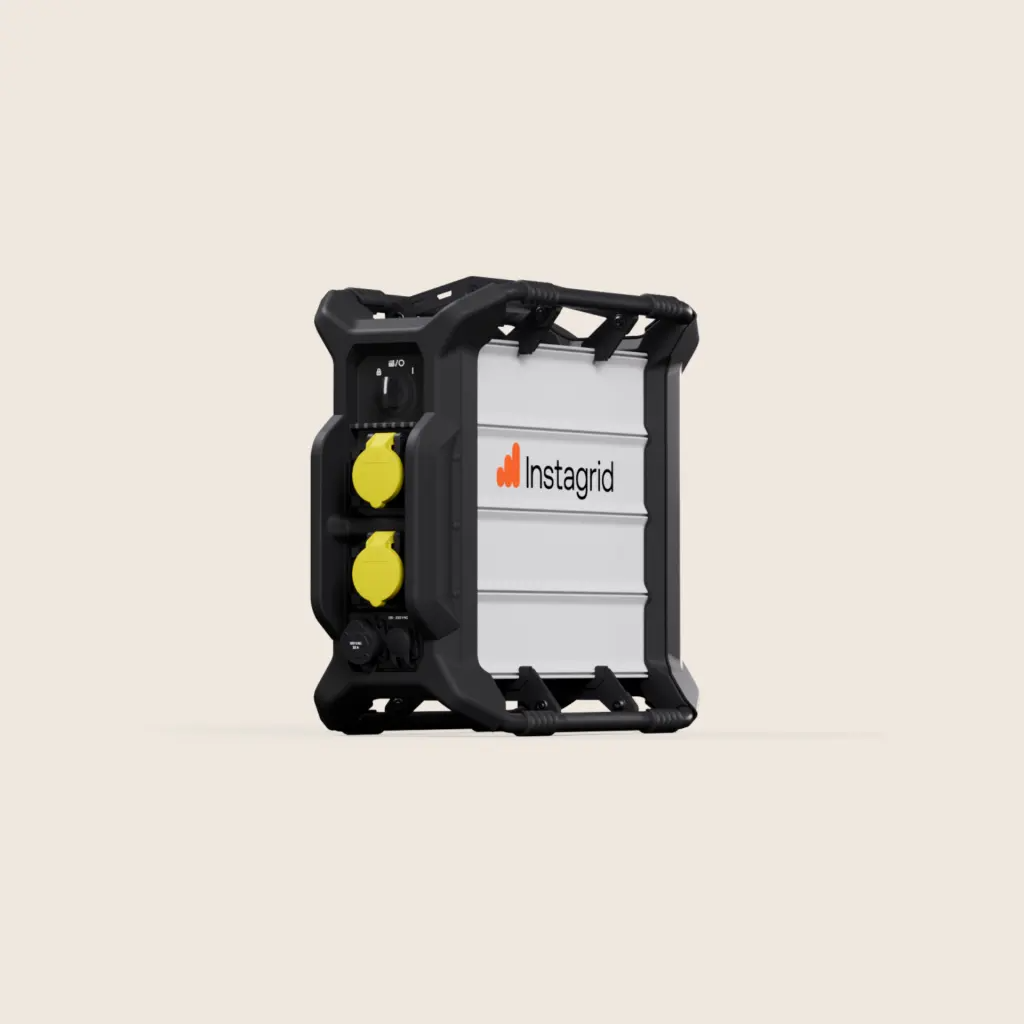

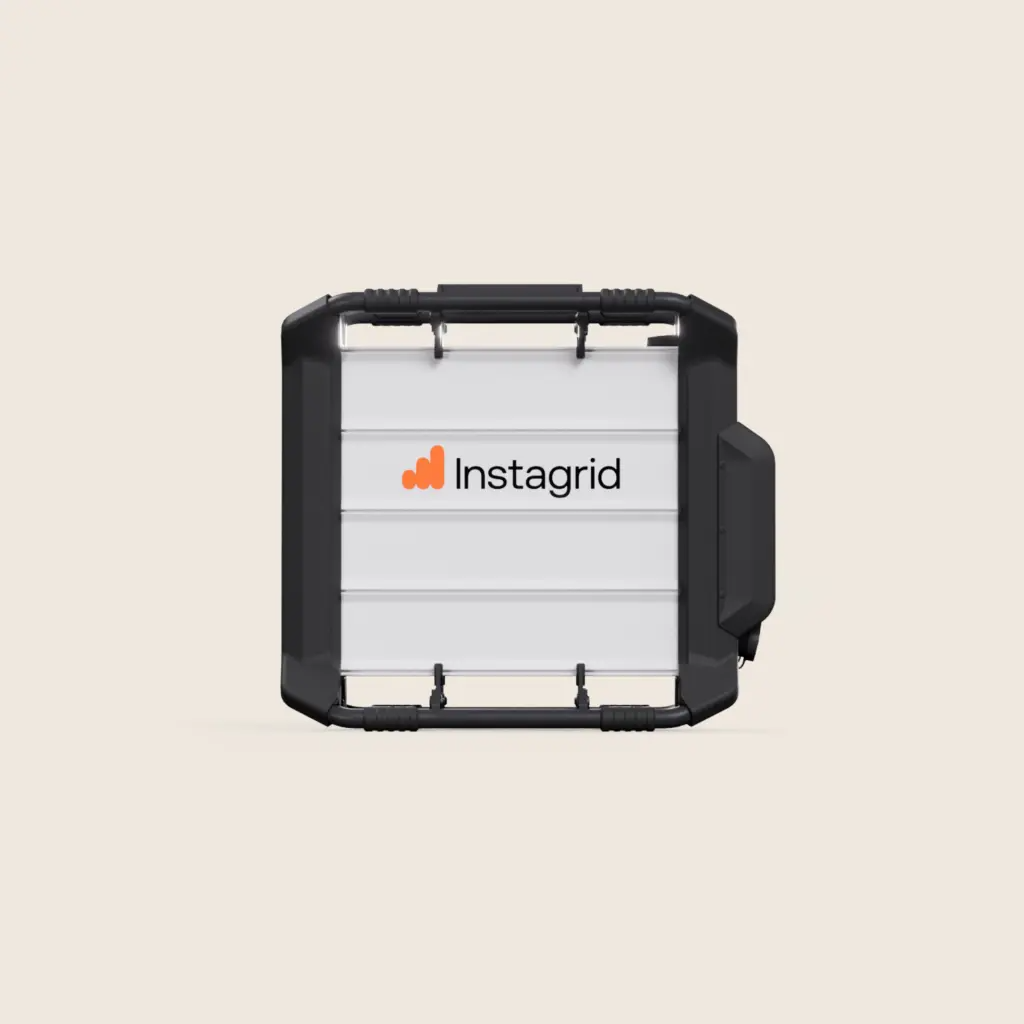

Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station
Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station

Instagrid GO 36 LV 110V 3600W 2074Wh Portable Power Station

1 to 2 day delivery
SKU: INS_GO-36-LV-901-00008
  • 3600W AC Pure Sine Wave Inverter (18000W Surge)
  • 2074Wh Capacity Lithium-Ion Battery (expandable with LINK)
  • 2 x 16A 110V CEEform Output, 1 x 32A Output (needs adaptor cable)
  • powerCON TRUE1 Input
  • Built-in GPS and Smart App Controller - iOS & Android App *in constant development*

This product is available for a date/time specific delivery, please contact us to discuss.
Price:
£4,314.00
Ex. VAT £3,595.00

Delivery calculated at checkout. Free UK delivery on orders above £300.

Stock:
In stock
Delivery: 1 - 2 working days

Description

The Instagrid GO is the perfect portable power solution for your most demanding tools.

Plug & Play : Professional power at the flick of a switch. Grid-like Power, it generates a pure AC sine wave.

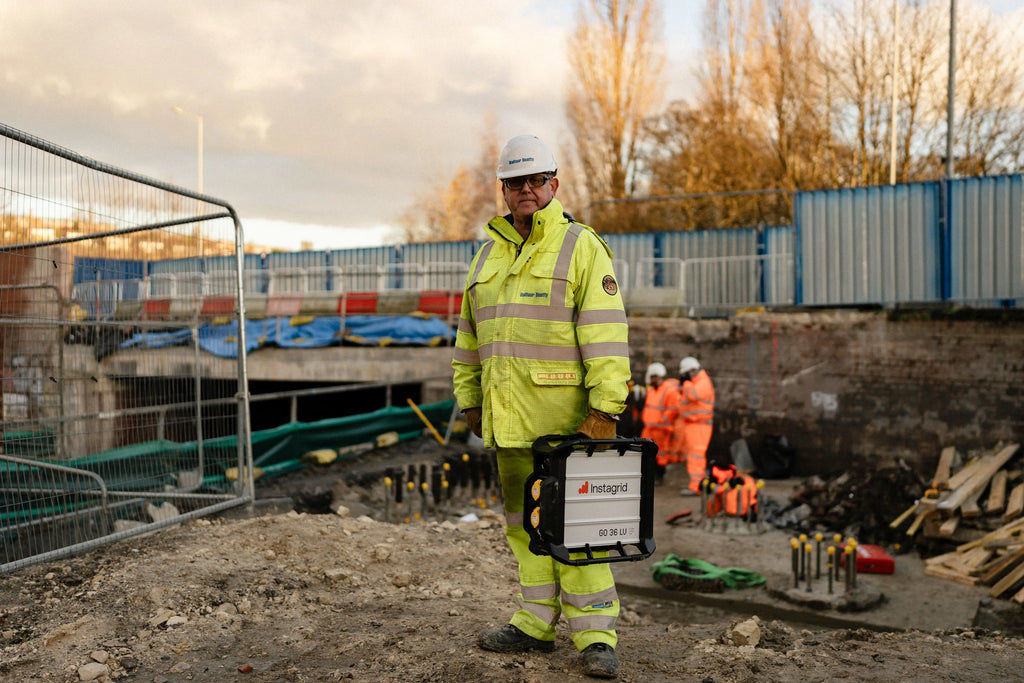

Truly portable, weighing only 21kg and with an output of 3.6KW, the Instagrid GO provides fast and convenient power, wherever and whenever you need it.

Instagrid GO is completely silent - Fanless design and no exhaust emissions.

Output Voltage 110V AC
Long Runtime of 2.1kWh
3600W Continuous Power
18000W Peak Power
Fast Charging in 3 hours
IP rating of IP54

Engineered and designed in Germany

The Instagrid GO has built-in GPS and Smart App Controller; the iOS & Android App to access this functionality are in development & in beta

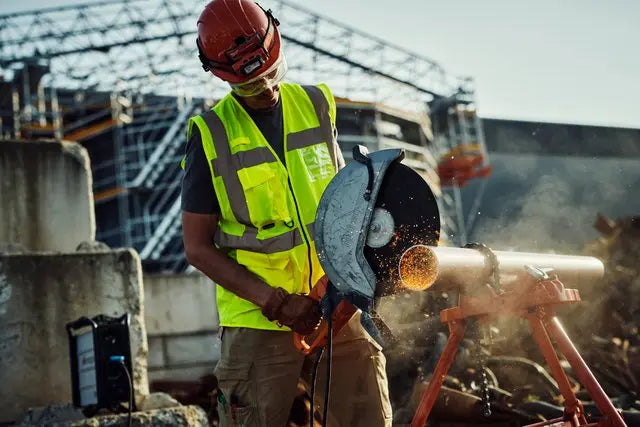

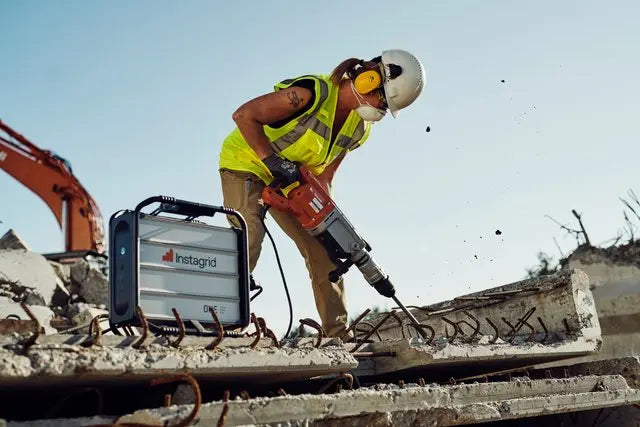

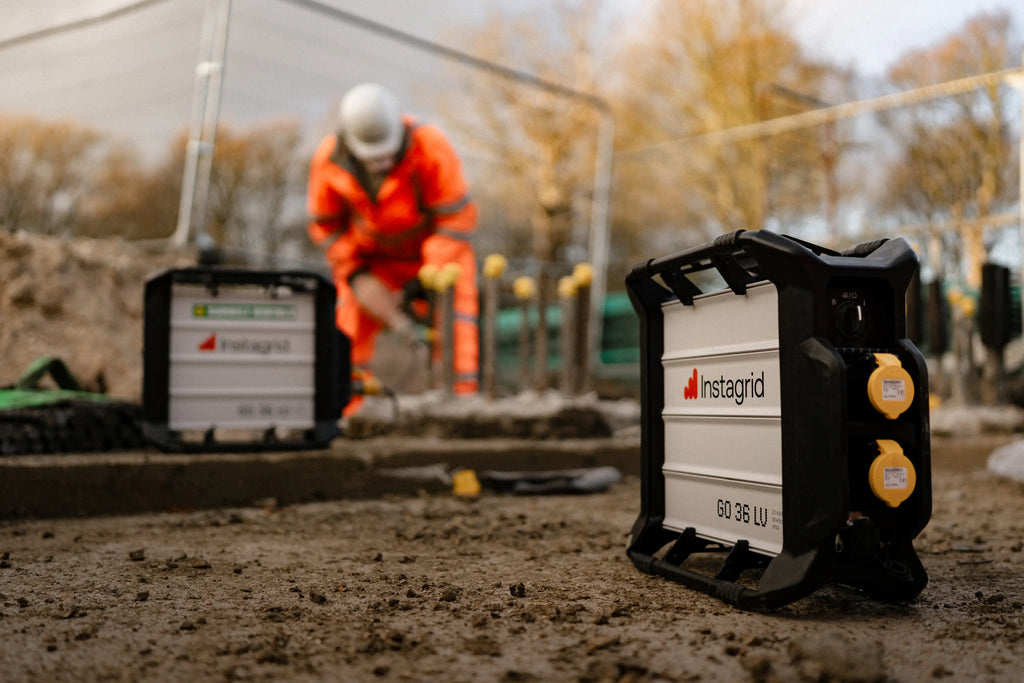

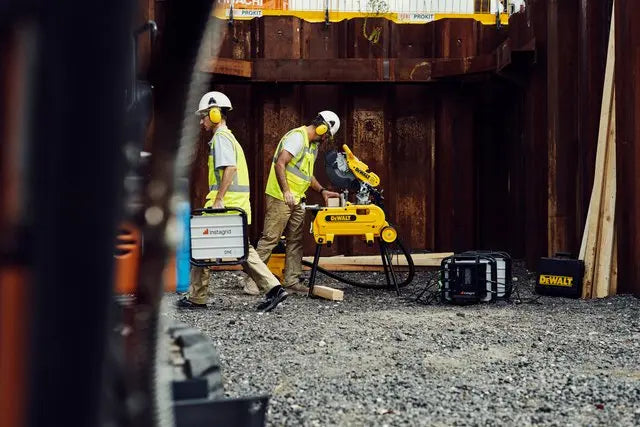

Construction, Power your most demanding tools!
ELECTRIC
Output voltage: 110V (AC) / 50Hz
Rated output power: 3600W (2 x16 A)
Available energy: 2074Wh
Charge duration: < 3 hours up to 100%
Rated input power: 600-1440W 6A
On (idle): 150 hours
Storage: > 3 years (switch in “off” or “transport” mode)

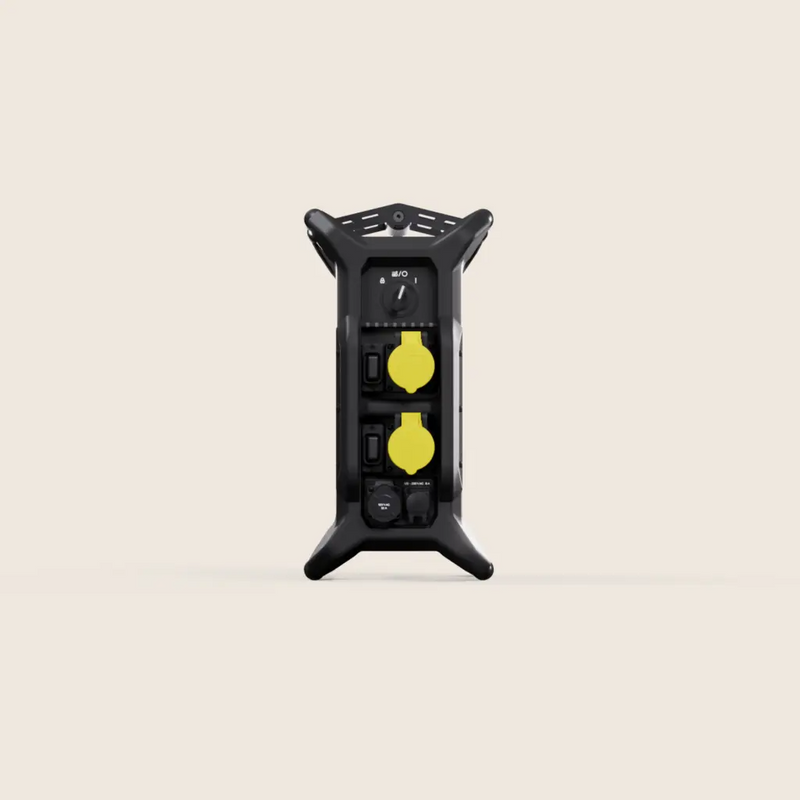

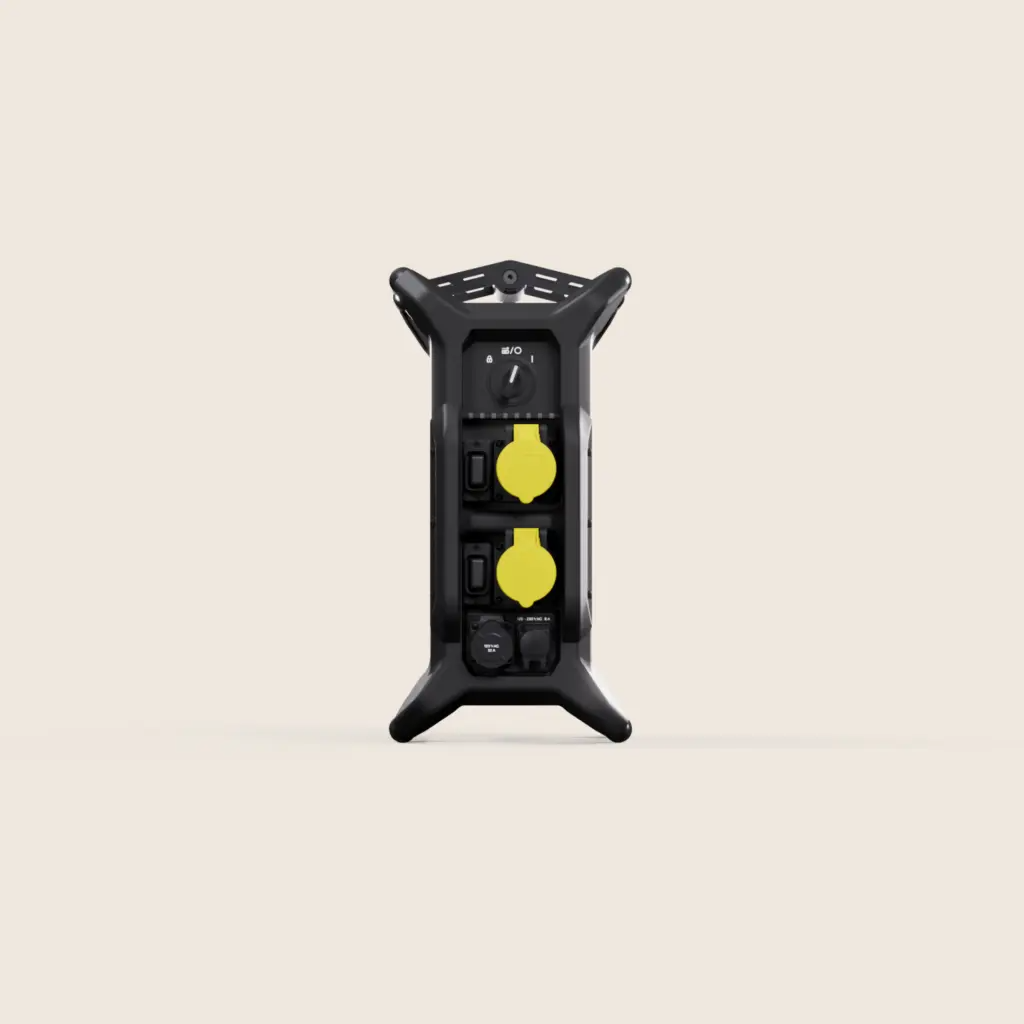

Power outlet: 2 x CEE 16A 3p 4h (120V AC)
Power inlet: Neutrik powerCON TRUE1 Panel Mount Plug (16A)
PEAK POWER
150% overload (>450 sec): 5400 W (49A)
200% overload (>60 sec): 7200 W (65A)
250% overload (>16 sec): 9000 W (82A)
300% overload (>6.5 sec): 10800 W (98A)
Peak power: 18000 W (80A)
PHYSICAL
Weight: 21kg
Dimensions: 458mm x 210mm x 420 mm
Outer case: Recycled aluminium
ENVIRONMENT
IP class: IP54
Noise emissions: below 30 dB(A) / whisper-quiet (fanless)
TEMPERATURE
Ambient temperature: 0°C up to 45°C
GENERAL
Warranty: 24 months



Instagrid GO Datasheet
